How To Repair Wires Inside Security Camera

Damaged RJ45 connectors in security cameras are a common occurrence. In that location are many reasons why the RJ45 plug of the camera tin get damaged such as water going within the connection and corroding the pins, burned connector considering of an electrical consequence or thunderstorm, bad quality camera, etc.

This issue tin can be frustrating, your photographic camera doesn't work and your security is compromised. Moreover, a damaged RJ45 connector voids the warranty since it'south considered an improper installation.

Well, there's a quick ready that can bring your camera online again. In this guide, nosotros will prove how to ready a damaged (burned) RJ45 connector of a security camera. Follow the instructions step by step and you'll fix your burned camera RJ45 connector.

How to fix a damaged RJ45 connection on an IP security photographic camera?

There are two basic methods to replace a damaged RJ45 connector on a camera's pigtail. Both consist of cutting the damaged connector and reestablishing the connection by using an Ethernet coupler or a Keystone Jack.

Keep in heed, you lot need the pinout diagram of the camera's pigtail and, unfortunately, this is not standardized yet. It's better to check the spec sheet of the security photographic camera or contact the manufacturer.

Usually the manufacturers use their own color coded pinouts, for example, the orangish wire may exist power on some manufacturer or data in others.

Important notation: Depending on the amount of harm caused on your RJ45 connector, these tricks may not work. Sometimes the rainwater that enters the connector may cause the camera to short circuit which volition apparently burn the photographic camera'southward motherboard.

In this case, no matter if yous redo the connector, the camera is fried and it'southward beyond repair. However, in other instances, redoing the connector may bring the camera back online. Either way, it's worth a shot. There's nada to lose, in the worst instance scenario the camera won't work which was already the case.

Our recommended method is to employ a Keystone Jack, information technology'due south easier, faster and less room for fault. Additionally, you lot may need to apply a few tools to perform the fix. All the tools can be hands purchased on Amazon or any local stores.

Damaged RJ45 camera connector: Ready information technology past using an Ethernet coupler

This method involves using an Ethernet coupler to create a substitute pigtail for your security camera. Basically we will cutting the damaged connector and re-constitute the connector using a coupler. The process is follow:

• Cut off the damaged RJ45 connector
• Crimp a new RJ45 connector into the camera'south pigtail
• Utilise an Ethernet Coupler and cable to connect the camera to the network (or NVR)
• Test out the connectedness to see if the camera is working.

Tools yous need for fixing the RJ45 connector using the Ethernet coupler method:

• An RJ45 crimp tool ( Amazon link )
• An RJ45 connector, pass-through blazon ( Amazon link )
• An Ethernet coupler ( Amazon link )

You can buy these tools on Amazon (check the links above). The connector comes in a pack, we still recommend to get a full pack since you lot may not get it right the commencement fourth dimension. Moreover, you lot can use them in the time to come once more if you lot need to terminate any cameras or network cables. It'southward always good to have spare parts.

Footstep i. Cut Off the damaged RJ45 connector

Once y'all get all your supplies, yous tin start to prepare your camera with a damaged RJ45 connector. Starting time of all, allow's beginning by cutting the damaged connector. Cut off the pigtail right where the regular cabling starts. If the pigtail has connectors that you don't use, such every bit audio in, sound out etc, you can cut them off besides to make more room for the new connection.

Next step is to utilize your crimp tool to strip the camera's cablevision. Pull dorsum any insulation and betrayal the 8 colored wires inside the cable. Y'all tin can cut off the excess insulation to make room for the termination process.
Important note: When you lot strip the cable, yous may find boosted cables within. Some camera models come with audio connections (sound IN, audio OUT), alarm connections, BNC connections, etc,. Usually, you lot don't demand to worry well-nigh the additional cables, to bring the IP photographic camera online you lot need to deal with Ethernet wires only and redo the connection.

Stride 2: Finish the cable

At present you lot need to terminate the camera's cable, meaning you should crimp the (new) RJ45 connector. This is a bit catchy, considering wires are colour-coded differently depending on the manufacturer.

As we mentioned before, you need to become the colour-coded wire diagram from the spec sail of the camera by contacting the manufacturer/seller. Beneath we've listed the RJ45 pinout diagram for these brand name and resellers:

• RJ45 pinout diagram for Hikvision logo and OEMs sold under these brands: 3xLogic, ABUS, Acegear, Activecam, ADJ, Advidia, Alarm.com, Alibi, Allnet, Alula, Anaveo, Annke, Arcdyn, Armix, Aukoo Technology, Aventura Technologies, Avue, Cantek, CCTVStar, ClearWay, Covert Security, Dax Networks, DMP, Dodwell BMS, DSS, Dunlop, DVR Unlimited, Ellipse Security, Epcom, Esypop, Ezviz, Gess Technologies, Global Network Security, GovComm, Grundig, GVS Security, Hinovision, Hitachi, Hitosino, Honeywell, Hunt CCTV, Hyundai Security, Infinite Pixels, Inkovideo, Innekt, Interlogix, Invidtech, JFL, Jlinks, LaView, LTS, Mercury Security, MicroView, Nelly's Security, Norelco SafeCam, Northern Cameras, Novicam, NTT, Oculur, Onix. Power Technology, Protect Group, Raster, Remark Thermal, RVi, Safety Vision, Safire, Scati, SecurityTronix, Picket CCTV, Abrupt, Siqura, Smart CT Solutions, SnapAV / Luma, Space Technology, Syscom, Technomate, Toshiba, Trendnet, Vantage Security, Vezco CCTV, Videoteknika, Winic CCTV, Zicom.
• RJ45 pinout diagram for Dahua logo and OEMs sold under these brands: Activecam, Advidia, Amcrest, Ameta, Ascendent, Backstreet Surveillance, BV Security, CCTV Security Pros, CCTV Star, CP Plus (Orange Line), Dax Networks, eLine, ENS (formerly Eastern CCTV and SavvyTech), Expose, Lorex, GSS, Honeywell, IC Realtime, Ikegami, Impath Networks, Inaxsys, IndigoVision, Infinity CCTV, Innekt, Intelbras, KBVision, Lumixen, Maxron, Montavue, Oco, Optiview, Rhodium, RVI, Saxco, Security Camera King (Elite), Space Technology, Speco, ToughDog, Tyco Holis, Tyco Illustra Essentials, Unisight, VIP Vision, Watchnet, Winic, Zuum.
• RJ45 pinout diagram for Uniview logo and OEMs sold under these brands: 2M Technology, Cantronic, CCTV Security Pros, CNB, CP Plus, Dax Networks, Dorani, Eclipse, Envirocams, Fermax Australia, Galaxy, Geovision, Gess, Global, Grupo PV (Voxel), Invid Tech, LTS, Norden (Eyenor), Openeye, Oviss, People Fu, Q-See Presidio line, Raster, Revo, Security Camera Warehouse, Uniview Tec, Western Digital.

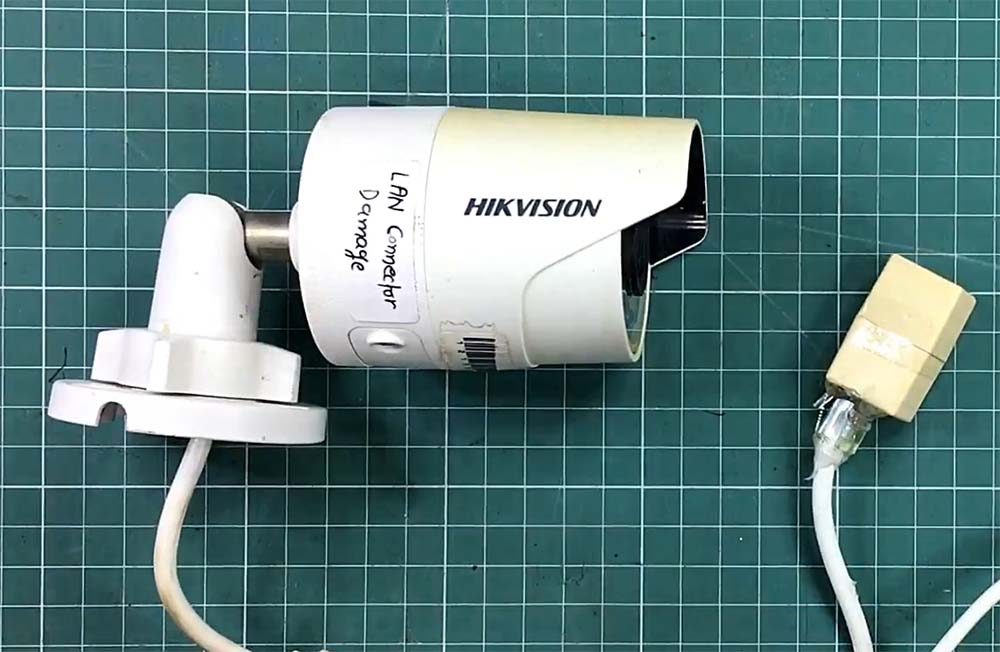

In this example, we will use a Hikvision logo camera. When you cut open the and strip the cable from a Hikvision camera yous should be able to run across a full of eight wires: brown, white, blue, gray, purple, greenish, orange, and yellow.

Notation some Hikvison cameras may contain 10 color coded wires inside the cablevision, including solid cerise and black which are used to ability the camera (from the 12V DC). You tin can cutting them off, we don't need them since the camera will use Power over Ethernet (PoE).

Once the ability wires (red and black) are eliminated, you'll be left with eight color coded wires. Accept a look at the RJ45 pass-through connector, you'll notice eight little rivets/"holes" that are used to guide the color wired into the eight pins.

All nosotros have to do now is line up the wires from the camera's pigtail, guide them on the pass-through connector and terminate the connexion. Simple equally that.

In a standard Ethernet cable, the two orange wires and the two light-green wires are used for data manual, while the bluish and dark-brown wires are used for ability (PoE). Below we've shown the pinout of the Hikvision camera.
Guide the lined-up wires on the pass-through connector, push them all the way and and so crimp them downward. Check the pin's side to make sure all the wires are terminated. Once done, move to the next step.

Stride 4. Test out the connection

At this point the connection is redone. Connect your Ethernet coupler to the camera then connect the photographic camera to the network (PoE switch or directly to the dorsum of the NVR).
Wait and meet if your photographic camera turns on, if the IR lights blink on it means the camera is getting powered. Test out if you see any flick on the screen, or use your laptop to scan the network and locate the IP address of the camera. If you see it there, congratulations, you fixed your camera with a damaged RJ45 connector.

If your camera is dorsum online, y'all need to weatherproof the connexion if you intend to install the camera outdoors. Use waterproof tape to insulate the connectedness. Make information technology every bit tight as possible. Information technology doesn't have to wait pretty, all we intendance is for the camera to piece of work again.

Damaged RJ45 photographic camera connector: Fix information technology by using a Keystone Jack

We consider this method to be easier. All you need is a keystone jack, the pinout diagram of the camera and a punch down tool. The process is equally follow:

• Cut off the damaged RJ45 connector
• Inspect the keystone jack and line up the wires
• Punch downward the wires on the keystone jack
• Test out the connection to see if the camera is working.

Tools you lot demand for fixing the RJ45 connector using the keystone jack method:

• Cablevision stripper ( Amazon Link )
• A keystone jack ( Amazon Link )
• A punchdown tool ( Amazon Link )

You can go these tools on Amazon (click the link abreast each tool) or in any local shop. These tools are handy and yous can use them again if y'all have issues with your security cameras.

Step 1. Cut Off the damaged RJ45 connector

Same manner as we discussed previously, cut off the damaged connector from the photographic camera's pigtail. Remove the other cables on the pigtail if you don't intend to employ them (such equally alarm, audio, BNC, etc.)

Utilize the stripper tool (or a sharp knife) to strip down the cable and you should be able to see 8 color-coded wires. In some cameras you may see 10 wires, ii of them (black and cherry-red) are for the 12V DC power. Cut them off equally well since we will be using PoE. In total you should take eight wires to dial down on the keystone jack.

Pace ii. Inspect the keystone jack and line up the wires

At that place's no need to crimp a RJ45 connexion into the Ethernet cable of your photographic camera. Instead, nosotros'll punch down the eight colour wires into the keystone jack. There are a few types of keystone jacks, the one that doesn't need a dial downwardly tool and the one where the tool is required.

Either way, the about important thing is to line upward the wires correctly based on the diagram printed on the keystone jack. All the jacks have a colour lawmaking alongside a number and are usually compliant with two standards: T-568A and T-568B.

Usually the order on the keystone jack is:

• Left side, top to bottom: two, 1, vi, 3
• Right side, top to bottom: four, five, seven, 8 .

Make certain to consult the labeled number on the keystone jack. In some cases, especially if the keystone jack is designed to work without the punchdown tool, the wires may be inversed into the jack from upside-down. And so, left side, meridian to lesser: iv, 5, 7, 8; and right side, top to bottom: two, i, 6, 3 (the opposite of the bullet points in a higher place).

Beneath is the diagram for a standard RJ45 Keystone Jack (for an Hikvision camera).

If the keystone is toolless, the line upwardly be upside-down the diagram (bank check the paragraph above).

Step three. Punch down the wires on the keystone jack

Use the punch down tool to button down each wire on the keystone jack's terminal. The tool'south blade should be positioned on the outer side of the jack and will cut the excess wire when y'all push it down. On each punch downwardly you should hear a click noise from the tool.
If you got the keystone that doesn't require a tool, simply lineup each wire on the terminals and snap the jack closed. Brand sure the chapeau is tight and well closed. Use the clamp, if your keystone jack comes with one.

If your keystone jack does non require a tool, yous'll need to line upwardly each wire at the same time. And so yous'll snap your jack closed. Sometimes your jack will include a small lever ,which you can use to clamp the jack even tighter to assist in cutting off whatever backlog wire.

Step 4. Test out the connectedness

Once done, plug the camera dorsum to the network or NVR and wait to run across if it comes online. Usually, if the connection was done correctly, the camera volition be dorsum online after 3-5 minutes.

If y'all don't see any light coming from the camera, it means the camera is not getting powered on. Try to re-do the connectedness 1 more than time. Make sure to follow the right color line up diagram. Sometimes the camera itself is fried up (burned) and the problem is non at the connector.

If the photographic camera is working, ensure the connection is weather proof. Utilize waterproof tape to insulate the jack (if you lot intend to install the camera outdoor).

Conclusion

If your security camera has a damaged RJ45 connection, it's not still a lost cause. You lot tin endeavor to re-do the connector by using one of the methods shown higher up (Ethernet coupler or keystone jack).
An important part of these procedures is to accept the right colour wire pinout of your security photographic camera. Y'all can check the camera's spec sheet or contact the manufacturer/seller and ask them to provide the diagram.

If any questions are suggestions, don't hesitate to contact us via the comment box below.
